ML-C 2600

Thermoforming Machine ML-C 2600

Description

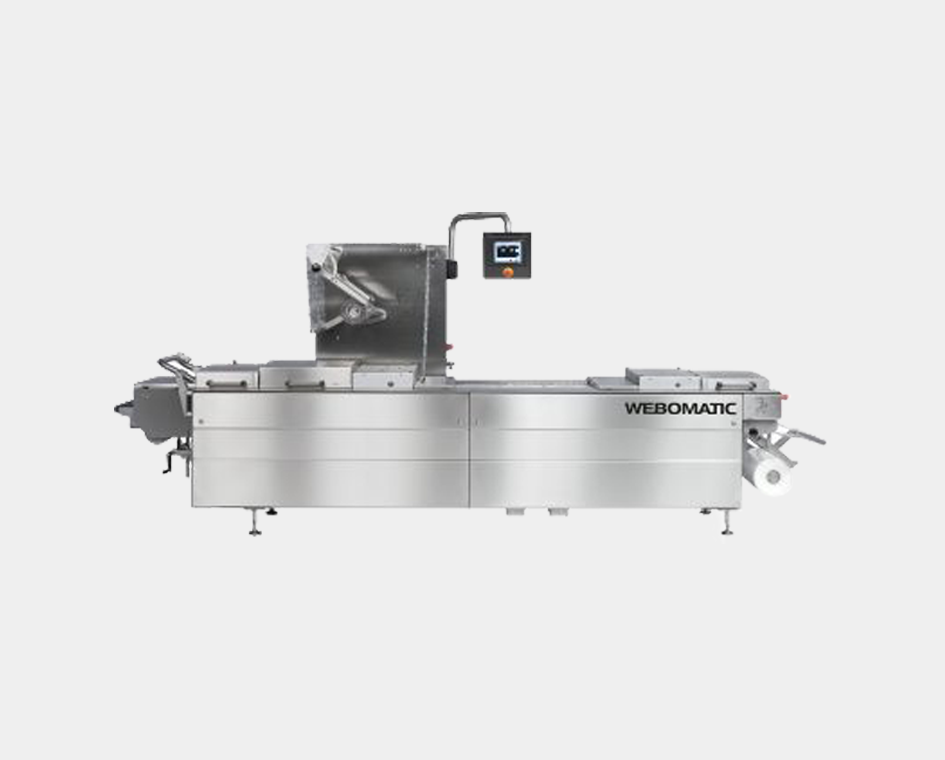

Thermoforming Machine ML-C 2600

The ML-C 2600 is the economical thermoforming machine that does a great job in small to medium sized companies! With a total length of compact 3.7 m, this thermoformer fits any location. He manages to create high-quality packaging quickly and inexpensively in the smallest of spaces.

Standard equipment:

WEBOMATIC CleanDesign® WEBOMATIC sealing technology WEBOMATIC SDT

Description

With a total size of just 3.7 m, the ML-C 2600 marks the compact entry into thermoforming and fits into nearly any place of use. This thermoformer is ideally suited for small or medium production and allows operation from both sides of the machine. Should preheating be applied, the loading zone is not reduced, optional pluggable forming inserts allow a product change-over within minutes.
Depending on specification, the ML-C 2600 can process rigid films up to 600 μm with a width of up to 422 mm in height repeat lengths up to 300 mm.

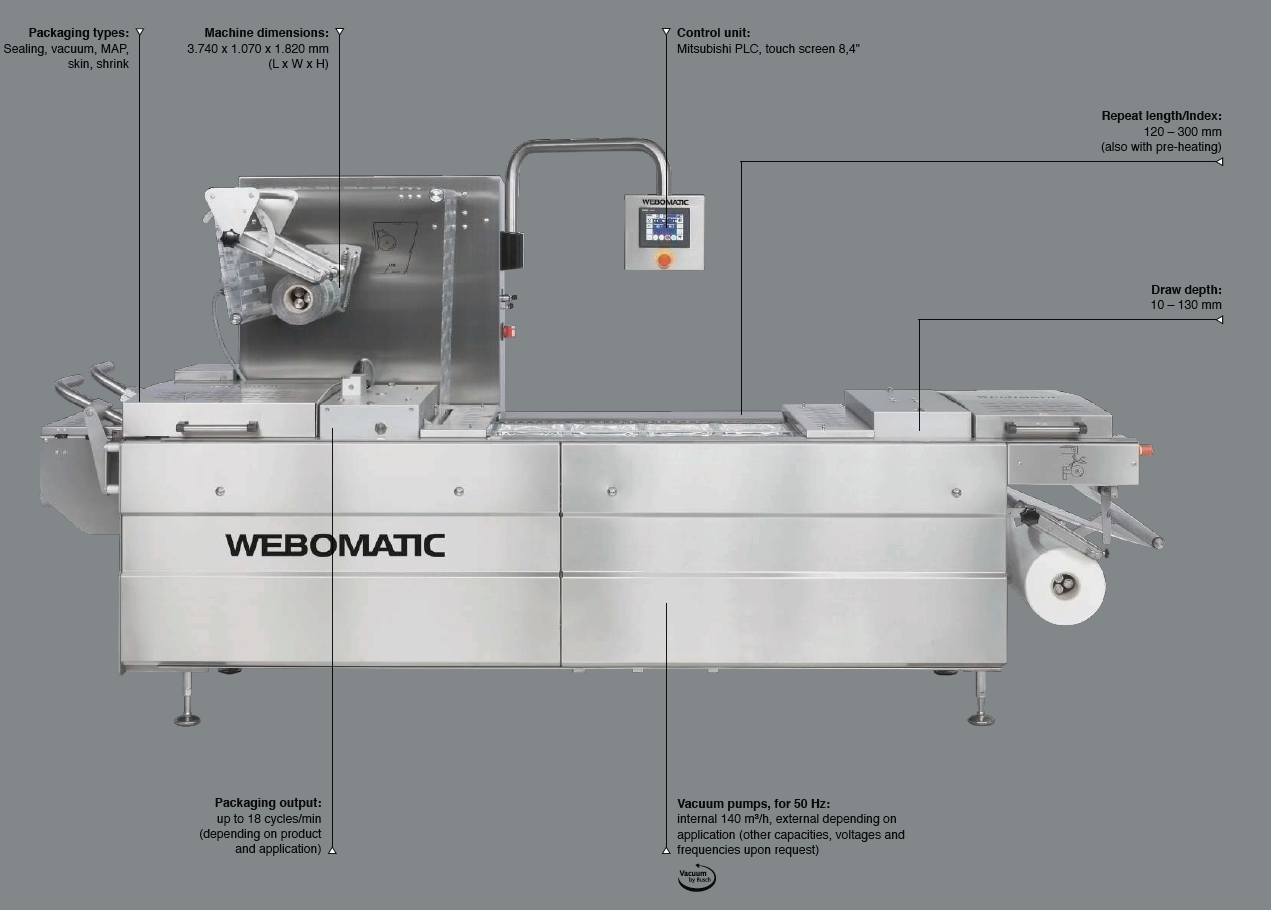

Technical Data



Area of use Food, Non-Food
Dimensions 3.740 x 1.070 x 1.820 mm (L x W x H)
Size/Capacity ●●
Output ●●
Customization ●●
Packaging variants 12 predefined shapes
Packaging Style Vacuum, MAP, Pseudo-skin,
Form shrink, 2pack
Index/Repeat length 120 – 300 mm
(max. 300 mm also with pre-heating)
Draw depth Max.130 mm
Bottom film width 322, 362, 422 mm
Bottom film: Flexible film PA/PE, Tyvec
Rigid film e.g. PET, PVC, PP, PS, , max. 600 μm
Top film: Flexible film e.g. PET, PVC, PP, PS
Rigid film Optional
WEBOMATIC CleanDesign®
WEBOMATIC Sealing Technology
Forming procedures Standard: compressed air
Optional: compressed airand
vacuum, plug assist forming
Top film forming
Cutting Standard: guillotine cut
Optional: Zigzag cut, Perforation
cut, Round corners, Squeezing
knife, Strip punch, Contour or
complete cut
Film rewinding with dancer arms Optional
Opening aids Optional
Pre-heating Optional
WEBOMATIC On-The-Fly Format Change
Pseudo-skin Optional
Protrude-skin
WEBOMATIC 2pack Optional
Form shrink Optional



Options

Options for individualized packaging

  • MAP
  • oxygen O2
  • Skin or form shrink packaging
  • Top film forming for Snap-in Lids
  • Gas mixer and/or analysis device
  • Pre-heating systems
  • Knee-free loading zone
  • Various forming procedures
  • Various cutting systems
  • Various pack coding and printing systems, like:- print mark control
    – labelling equipment, bottom and top
    – stamp coding
    – hot embossing
    – thermo transfer printer
    – inkjet
    – laser systems
  • Opening aids, like peel corners, bend and peel, etc.
    Detection systems

Options for better processing and efficiency

  • Various PLC control based aids:-communication module
    – remote diagnosis
    – extended production data analysis
    – adaption and tailoring of further
    – digitalization concepts
  • WEBOMATIC On-The-Fly Format Change
  • Quick-changing device for format change
  • Jumbo reel device (straight or in 90° angle)
  • Support rolls in the loading zone
  • Film strip rewinding
  • Height-adjustable split conveyor belt
  • Secure water cooling system
  • Lifting limit via PLC control unit
  • Synchronisation with automatic supply system
