duoMAT 450

Double chamber machine duoMAT 450

Categories: , , Tags: , , ,

Description

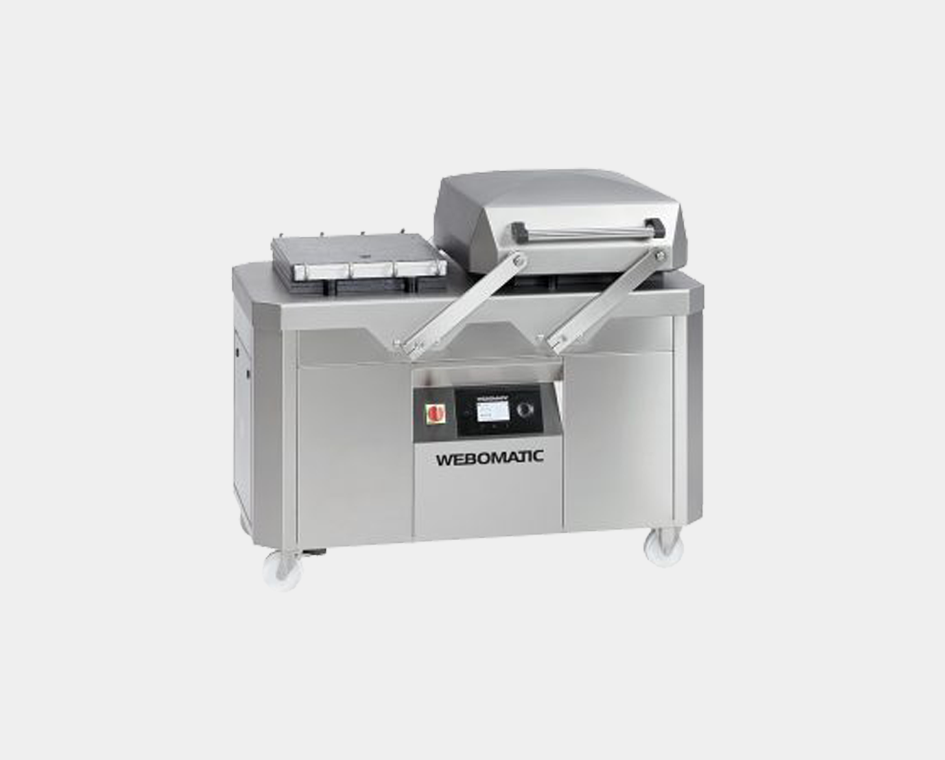

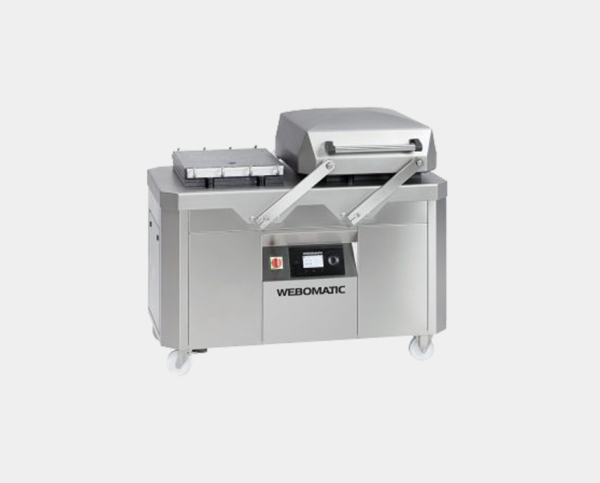

Double chamber machine duoMAT 450

The duoMAT 450 double chamber machine in WEBOMATIC CleanDesign® stands for efficient vacuum packaging with low space requirements. Two vacuum chambers allow staggered vacuuming and loading of a wide variety of products with an edge length of up to 45 cm.

Sealing strip variations

Double Seam Separation Sealing (DST) Double Seam Sealing (DSS) Bi-active Sealing

Efficient vacuum packaging.

The smallest WEBOMATIC double chamber machine duoMAT 450 guarantees efficient packaging in the smallest space. Two chambers and the swivel lid system enable the staggered loading and vacuuming of a wide variety of products. Products with an edge length of up to 45 cm. While the packaging cycle is running in one chamber, the second chamber can already be loaded again.

Intelligente Packaging
Like all double-chamber machines in the duoMAT series, the duoMAT 450 is equipped with the intelligent IGT premium control system equipped. This includes three selectable vacuum packaging modes and up to 20 individually adjustable packaging programs.

Easy maintenance
Comfortable maintenance: The sealing bars of the vacuum chambers can be removed with a targeted movement of the hand can be solved. Special service flaps give you convenient access to the vacuum pump and the lateral mounted switch cabinet.

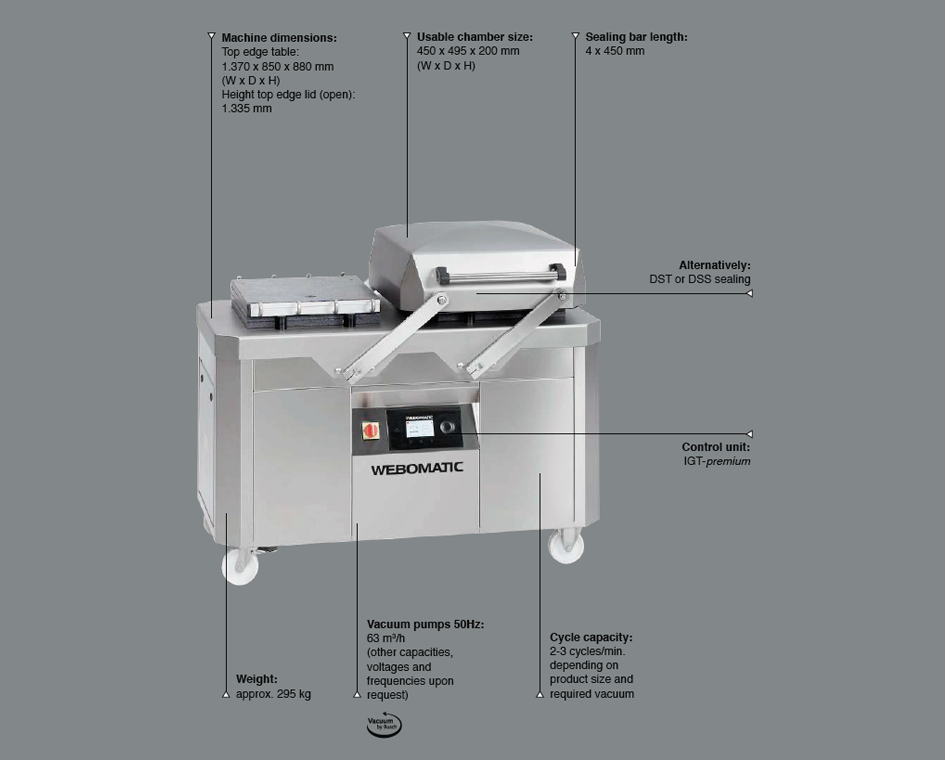

Technical Data

Machine size: Table height: 1.370 x 850 x 880 mm (W x D x H)
Lid height (open): 1.335 mm
Vacuum chamber measurement: 450 x 500 x 180 mm (W x D x H)
Maximum product size: 450 x 500 x 130 mm or 350 x 500 x 180 mm
(W x D x H), conditioned by the range of movement of the lid
Length of the sealing bar: 450 mm
Vacuum pump: 63 m3/h, larger pumps optional
Weight: approx. 338 kg
Cycles: 2-3 Cycles / Min., depending on product type and size
Version: castors with parking brake

Equipment

Equipment features double chamber machine duoMAT 450

  • – stainless, hygiene-friendly stainless steel
  • – WEBOMATIC CleanDesign®: hygienic wet cleaning
  • – flat design as table top – work surface open on all sides
  • – 160 m³/h Vacuum pump
  • – sealing bars to be removed without tools, without disturbing cables
  • – food-safe PE-plastic insert plates
  • – service-friendly design
  • – Oil drain cock on the pump
  • – Motor-protective circuit-breaker

Options

  • MAP
  • soft air
  • compressed air
  • bi-active sealing
  • separator
