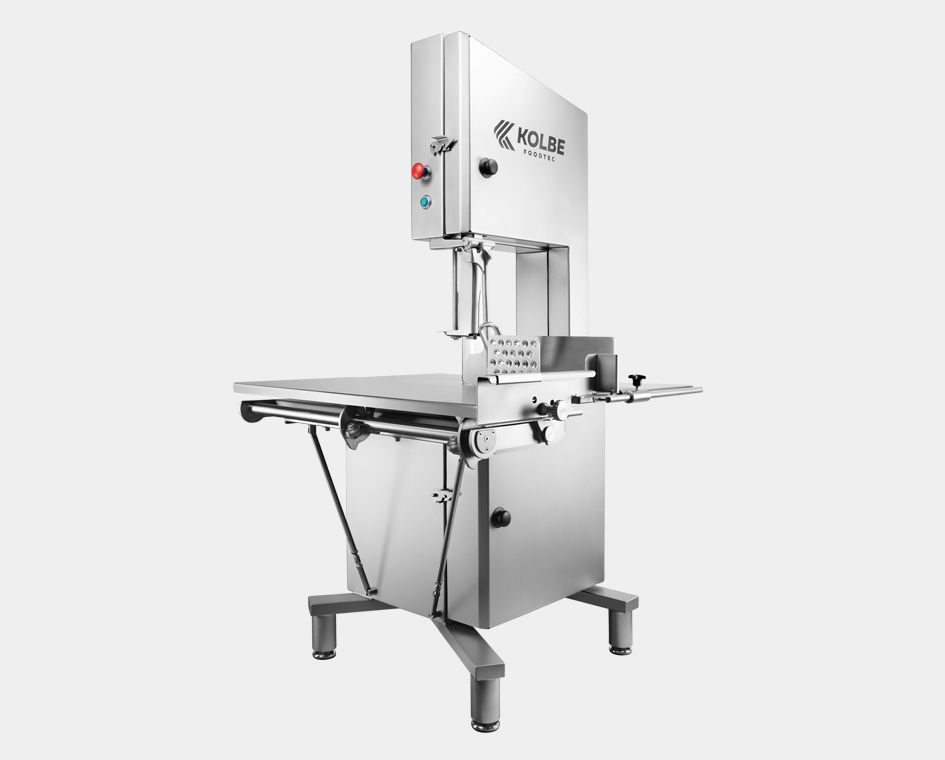

K440RS

The K440RS is the biggest model of the RS-Line and is equipped with a table made of caster bearings. In combination with the optional second speed this model allows for a precise portioning of fresh and frozen meat parts and fish blocks. Selectively, the bandsaw can be equipped with a bigger working table.

Categories: , Tags: , ,

Description

Wheel diameter430mm
Bandsaw blade3370 x 16mm
Blade speed32m/s
Pass of cutting height400mm
Pass of cutting side412mm
Cutting stroke423mm
Section of portioning5 - 400mm
Table dimensionsWDH 879 x 970 x 910mm
Sliding table467 x 970mm
Machine dimensionsWDH 1057 x 1030 x 1970mm
Motor tension (3Ph)230 / 400V
Motor capacity / Protection system IP54 (Optional)2,9kW
Nominal current at 230 V 400 V (Optional)11,8 / 6,8A
Conductor size2,5mm2
Fusing at 230 V / 400 V (A lazy)16 / 16A
Noise level70,5db (A)
Weight net295 - 305kg

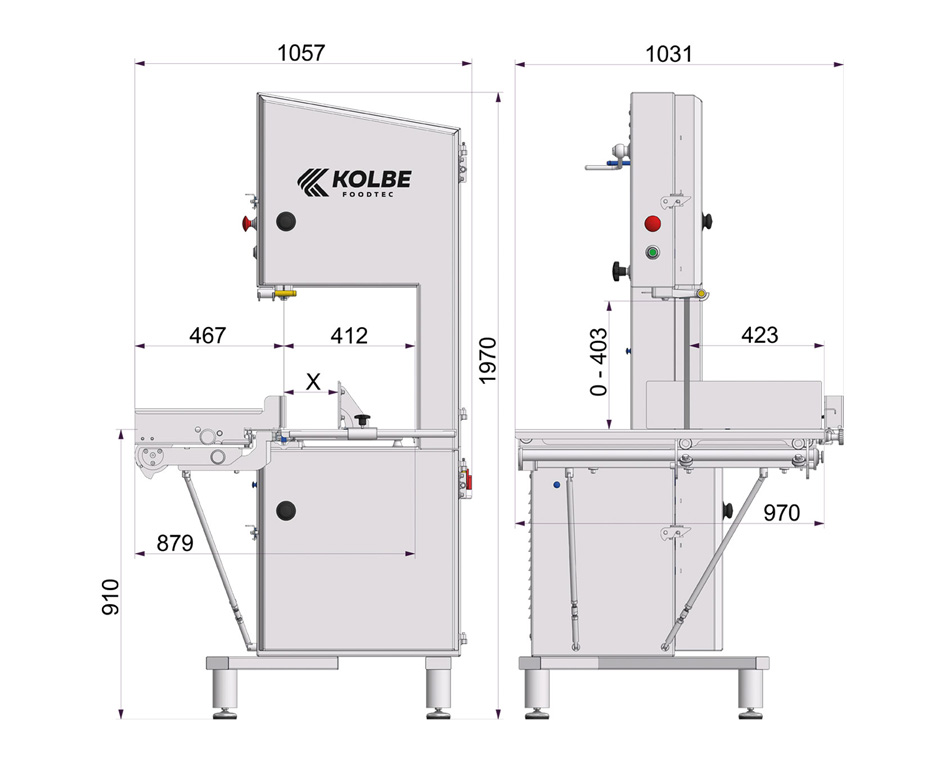

Description & Engineering Detail Drawing

The K440RS is the biggest model of the RS-Line and is equipped with a table made of caster bearings. In combination with the optional second speed this model allows for a precise portioning of fresh and frozen meat parts and fish blocks. Selectively, the bandsaw can be equipped with a bigger working table.

Because of the edgewise tiltable sliding table the bandsaws of our RS-Line offer better access and allow for an optimal hygienic cleaning.
