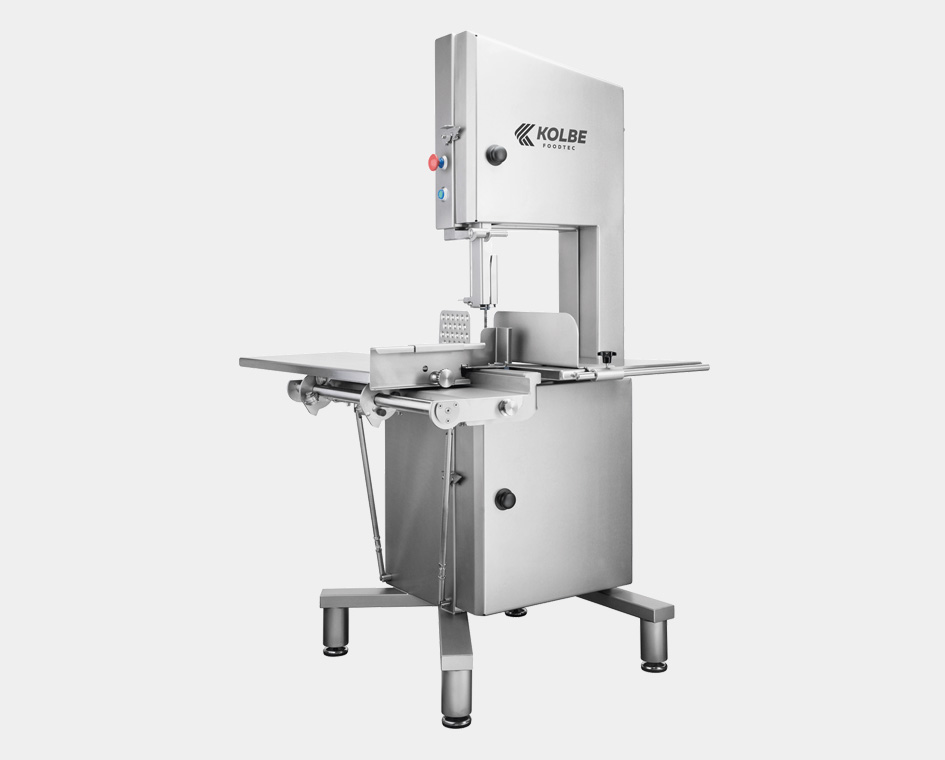

K380RS

The second largest bandsaw of our RS-Line is the K380RS. This model is also equipped with a spherically seated sliding table, but bigger than the table of the K330RS model.

Categories: , Tags: , , ,

Description

Wheel diameter380mm
Bandsaw blade3070 x 16mm
Blade speed28m/s
Pass of cutting height340mm
Pass of cutting side357mm
Cutting stroke360mm
Section of portioning5-345mm
Table dimensionsBTH 757 x 900 x 910mm
Sliding table400 x 900mm
Machine dimensionsBTH 924 x 960 x 1856mm
Motor tension (3Ph)230 / 400V
Motor capacity / Protection system IP54 (Optional)2,5 (4,0)kW
Nominal current at 230 V 400 V (Optional)9,9 / 5,7 (14,9 / 8,6)A
Conductor size2,5mm2
Fusing at 230 V / 400 V (A lazy)16 / 16A
Noise level72db (A)
Weight net250 - 270 kgkg

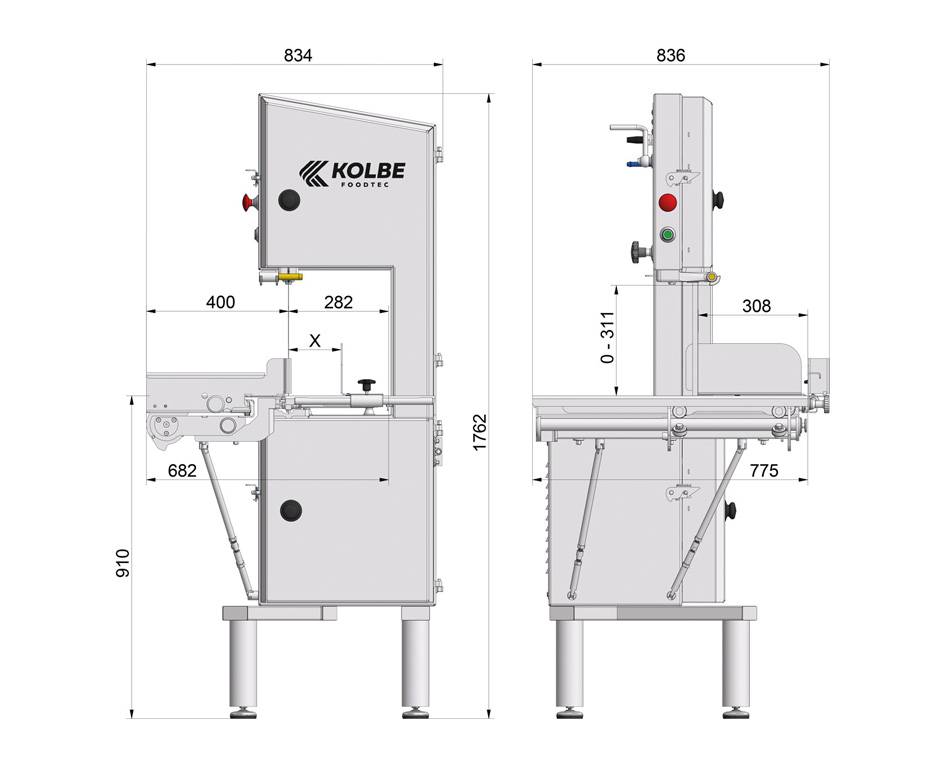

Description & Engineering Detail Drawing

The second largest bandsaw of our RS-Line is the K380RS. This model is also equipped with a spherically seated sliding table, but bigger than the table of the K330RS model. In combination with the higher pass of cutting, extended cutting stroke and the optional second speed, this model allows for a precise portioning of meat and fi sh, fresh as well as frozen.

Because of the edgewise tiltable sliding table the bandsaws of our RS-Line offer better access and allow for an optimal hygienic cleaning.
