SuperMax I

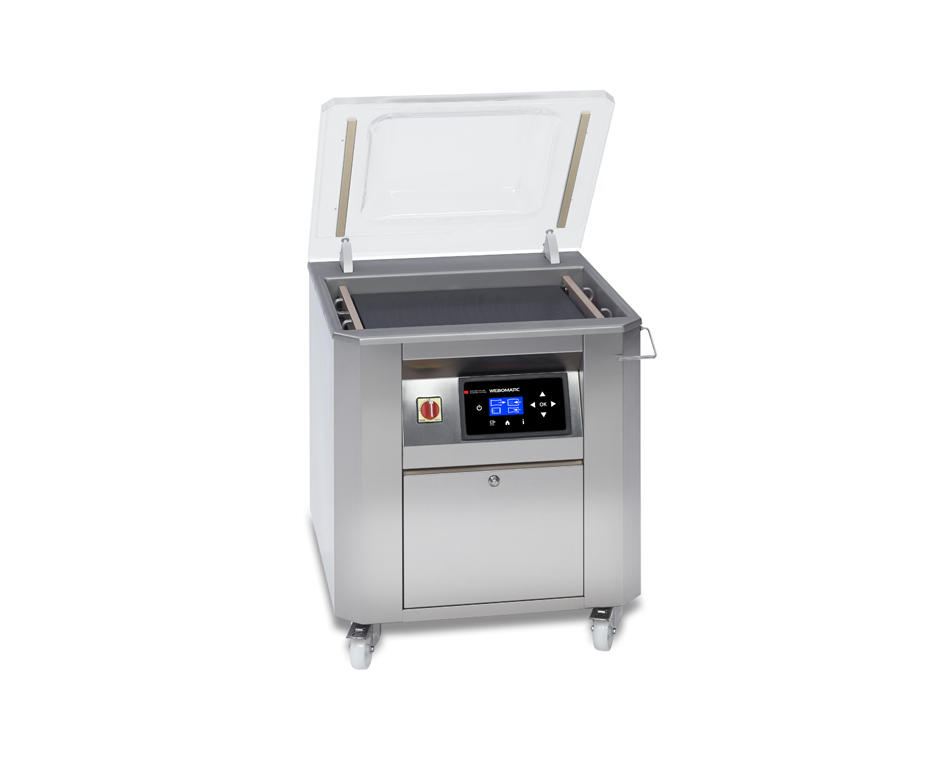

Vacuum Packaging Machine SuperMax I

รายละเอียดเพิ่มเติม

Vacuum Packaging Machine SuperMax I

Perfect vacuum packaging and highest comfort.

The vacuum packaging machine SuperMax I offers the optimal solution for medium packaging capacities due to its large vacuum chamber and mobility. The WEBOMATIC CleanDesign® allows an easy cleaning from the outside, for the inside cleaning the sealing bar can be quickly removed without tools.

Sealing bar variations

Double Seam Separation Seal (DST) Double Seam Sealing (DSS)

Optimal vacuum packaging – guaranteed.

The “classic” vacuum packaging machine is characterized by a balanced mix of high mobility, easy maintenance and cleaning as well as many individualization options.  External and internal cleaning as well as maintenance can be carried out easily, quickly and above all thoroughly.

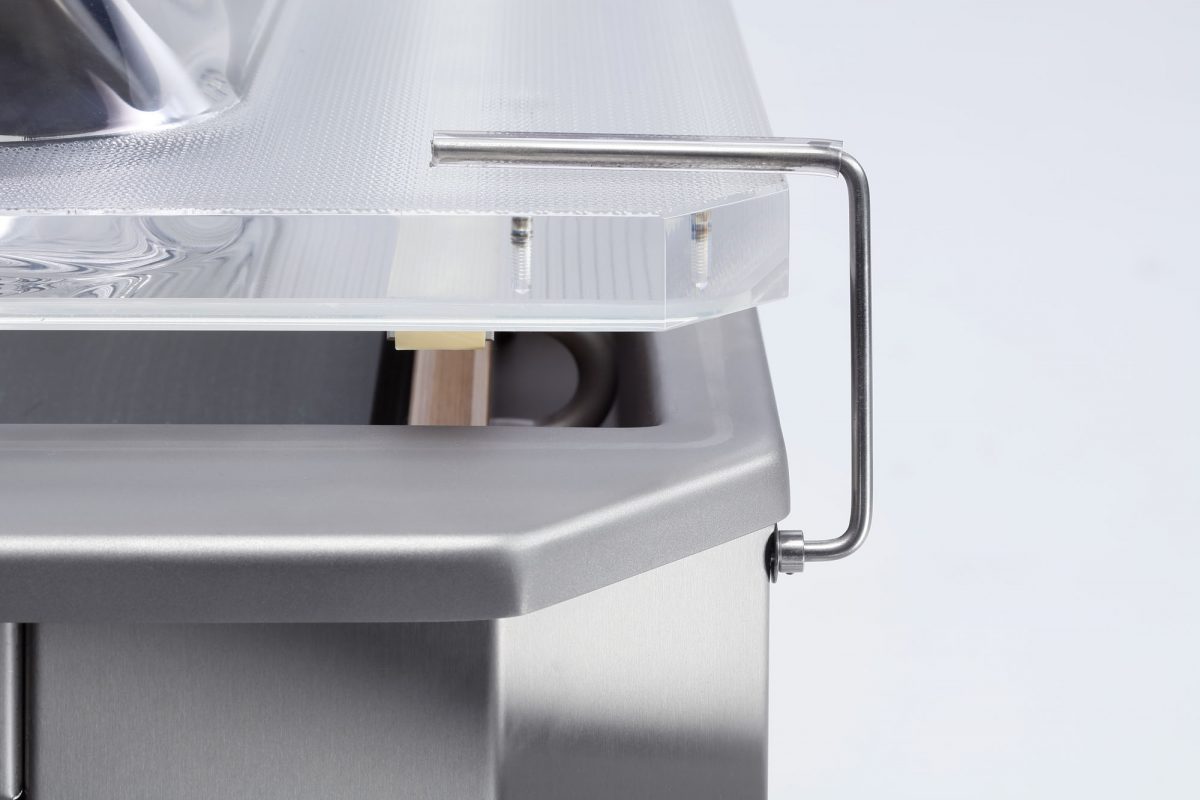

The sealing strips of this packaging machine can be removed tool-free, service-friendly and quickly with just one movement. With the IGT control, the vacuum packaging machine SuperMax I has a user interface that can store up to 10 individual programs. Separately adjustable separation and sealing times support the perfect vacuum packaging of food, medical products, consumer goods and industrial products.

Technical Data

Material: Stainless steel, double walled
Machine size: 780 x 790 x 967 mm (W x D x H)
Vacuum chamber: 720 x 520 x 190 mm (W x D x H)
Sealing bar length: 2×510 mm
Weightt: approx. 202 kg
Cycles 2-3 cycles/Min, depending on product type and size
Control IGT- Standard
Vacuum pump 63 m3/h

Options

  • MAP
  • soft air
  • high performance vacuum pumps up to 100 m3/h
  • single or three phase current
  • slanted filling plates
  • special voltage or frequency
