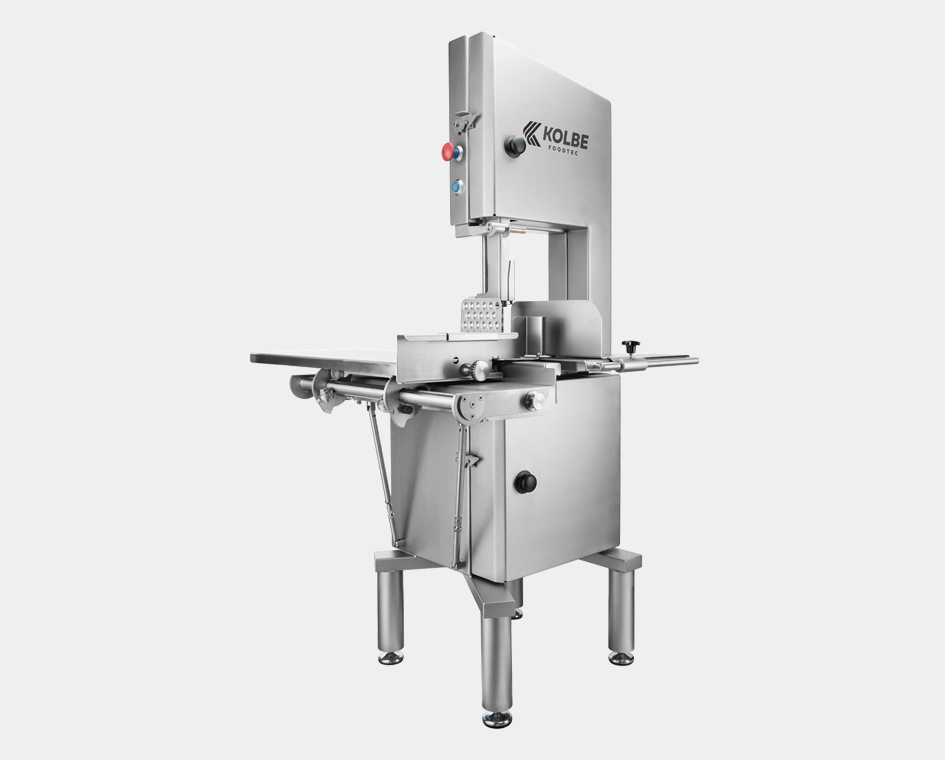

K330RS

The K330RS model is equipped with a spherically seated sliding table, which allows for a precise portioning of frozen meat parts and fish blocks.

Categories: , Tags: , ,

Description

Wheel diameter300mm
Bandsaw blade2490 x 16mm
Blade speed22m/s
Pass of cutting height306mm
Pass of cutting side282mm
Cutting stroke308mm
Section of portioning5-270mm
Table dimensionsBTH 682 x 775 x 910mm
Sliding table400 x 775mm
Machine dimensionsBTH 844 x 835 x 1762mm
Motor tension (3Ph)230 / 400V
Motor capacity / Protection system IP54 (Optional)1,5kW
Nominal current at 230 V 400 V (Optional)5,9 / 3,4A
Conductor size1,5mm2
Fusing at 230 V / 400 V (A lazy)16 / 16A
Noise level72db (A)
Weight net250 - 270 kgkg

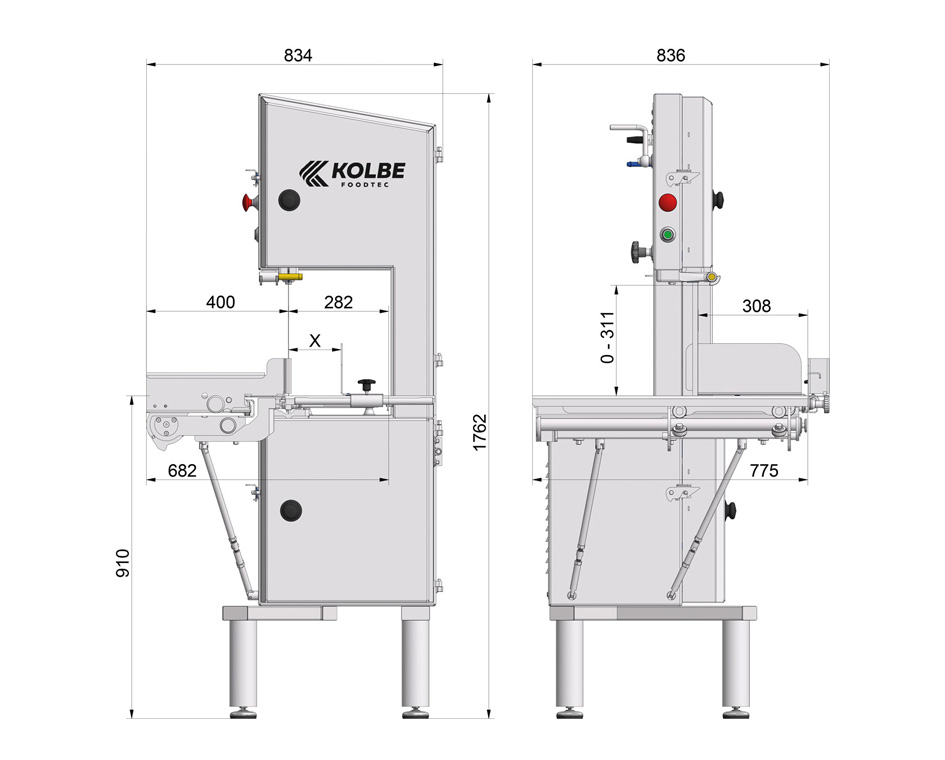

Description & Engineering Detail Drawing

The K330RS model is equipped with a spherically seated sliding table, which allows for a precise portioning of frozen meat parts and fi sh blocks. With its high cutting precision, very good cross section and a brilliant cutting performance, the K330RS is highly suitable for supermarkets, butcheries and the meat market.

Because of the edgewise tiltable sliding table the bandsaws of our RS-Line offer better access and allow for an optimal hygienic cleaning.
